SD-878

The independently developed and produced dual-chamber ultra-wide temperature range blackbody radiation source is mainly used as a dedicated device for calibrating non-contact radiation temperature measurement instruments such as infrared radiation thermometers and infrared thermal imagers.

Product Features

• The unique air curtain technology ensures that no condensation occurs during long-term low-temperature open operation. The temperature range can be freely combined from -30 ℃ to 1200 ℃.

• The cavity diameter is large, which can adapt to most D:S radiation thermometers.

• The European Continental 0.1-grade temperature control instrument is selected, featuring high temperature control accuracy.

• The temperature control instrument has multiple independent temperature correction functions

• The low-temperature cavity is a spherical structure and a tubular structure, made of high-emissivity materials, with a high emissivity.

• Our company's unique target surface treatment technology makes the target surface temperature more uniform. Even after long-term use and frequent temperature fluctuations, there will be no surface damage or chipping of the equipment. This product complies with the JJG 856-2015 "Radiation Thermometers for Work" regulation and can meet the daily verification requirements of infrared radiation thermometers and infrared thermal imagers in metrology units.


Temperature range: -30 ℃～100 ℃; -20℃～100 ℃ (optional); 100 ℃～1200 ℃; 50 ℃～700 ℃ (optional)

Cavity diameter: Φ 50mm

Emissivity: better than 0.998, better than 0.995

Resolution: 0.01 ℃ 0.1 ℃

Temperature control stability: no more than (the larger of 0.1 ℃ to 0.1%t) /10min

Uniformity: Not greater than (0.15℃ not greater than 0.15%t)

Cavity depth: 330 mm - 290 mm

Cooling time and heating time: 120 minutes from room temperature to -50 ℃, 60 minutes from room temperature to 100 ℃

Power supply: 220 VAC 50 Hz; approximately 4.0 kW

Overall dimensions: width: 850 mm, depth 550 mm,

Net Weight: approximately 120.0 kg

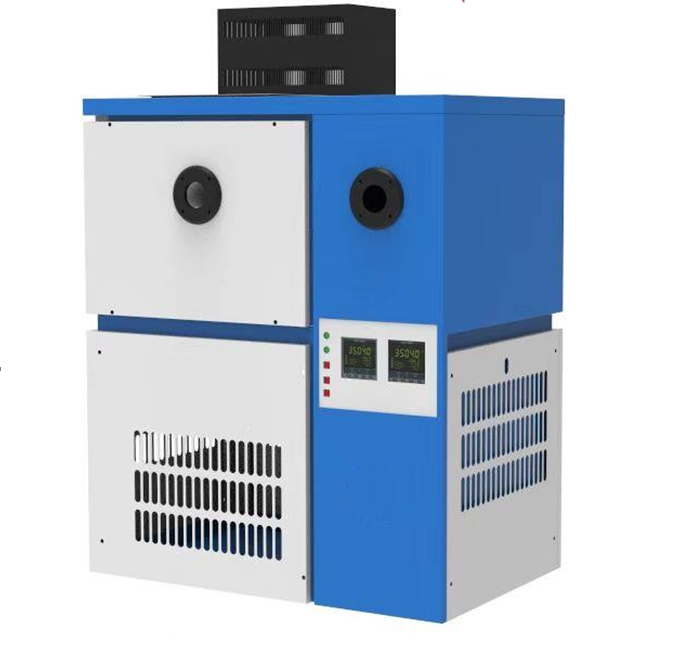

A blackbody radiation source with dual cavity ports and an ultra-wide temperature range
