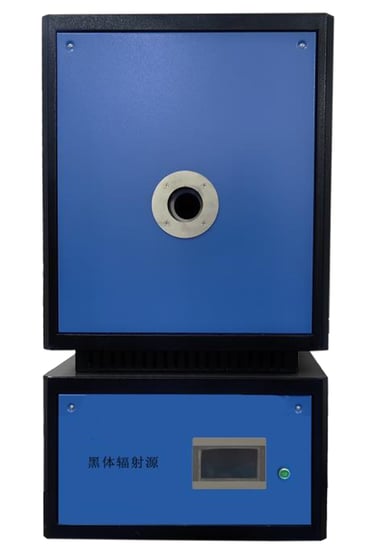

SD-1600R

The independently developed and produced high-temperature spherical blackbody radiation source is a special equipment mainly used for calibrating non-contact radiation temperature measurement instruments such as infrared radiation thermometers and infrared thermal imagers.The main technical indicators of the blackbody radiation source include the emissivity of the blackbody cavity, the uniformity of the target surface, and the temperature control stability.

Product Features

•  The set temperature point can be reached with one click;

•  7-inch touch screen control for more convenient operation;

•  Timed on/off function (can be started or shut down at any time);

•  Large cavity diameter, suitable for most D:S radiation thermometers;

•  Wide temperature range, 700 ℃ to 1600 ℃;

•  Adopting Eurotherm 0.1-class temperature control instrument with high temperature control accuracy;

•  The temperature control instrument has multi-point independent temperature correction function;

•  The cavity has a spherical structure; high emissivity materials are used, with emissivity better than 0.998;

•  This product complies with the requirements of JJG 856-2015 "Working Radiation Thermometers" regulation.


• Temperature range: 700 ℃～1600 ℃

• Chamber opening diameter: Φ50 mm

• Emissivity: better than 0.998Resolution: 0.1 ℃Temperature control

• stability: no more than (the larger of 0.1 ℃ and 0.1%t) / 10 minUniformity: no more than (the larger of 0.15 ℃ and 0.15%t)

• Chamber depth: 440 mmHeating time: 1h (from room temperature to 700 ℃), 2h (from 700℃ to 1600 ℃)

• Power supply: 220 VAC, 50 Hz; approximately 6.5 kW

• Overall dimensions: width 730 mm, depth 780 mm, height 1470 mm

• Net weight: approximately 150.0 kg

Blackbody Radiation Source (Touchscreen Version)
