Product Features

Laser night vision: Color HD monitoring during the day, and black-and-white HD monitoring with infrared laser activated at night, enabling all-day, large-range rapid target search and clear close-up observation of targets

 Near-infrared focusing HD lens, 30x optical zoom, 7.1~213mm

 Electric optical axis adjustment mechanism for easy correction of optical axis deviation

 Laser synchronous zoom, the illumination range in the picture automatically matches

 The size and intensity of the illumination spot can be stored and recalled to adapt to more illumination scenarios

 HPLM laser mirror component, ensuring no optical axis deviation during zooming

 FTIS, ATPC multiple protections, efficient and precise power supply, ensuring a long service life of the laser

 Class A high-power fiber-coupled laser, sealed with inert gas, strong heat dissipation design, with an expected service life of more than 20,000 hours

 Multi-layer infrared anti-reflection coating, advanced close-contact lens homogenization technology, with a spot uniformity of ≥95%

 Equipped with electronic optical three-level fog penetration function, unaffected by harsh weather such as sand, haze, rain and snow

 Image enhancement function, supporting anti-shake and heat wave drift suppression, ensuring stable 画面 under vibration, clear images under strong sunlight without crawling textures

 Supports absolute value positioning, relative value positioning and latitude and longitude positioning functions, adapts to radar and other detection devices, and reduces system joint debugging time

 No auto-focusing process during radar linkage, enabling direct clear target images for easy target tracking

 Moving target PID prediction algorithm, seamless integration of video tracking (optional) and radar tracking, solving the problem that radar blind areas cannot track targets

 Azimuth angle, field of view angle, focal length value, and focus value are actively uploaded

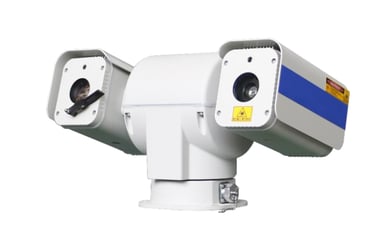

3KM Laser night vision integrated PTZ camera

Technical parameters

Visual Distance Daytime visual distance: 1000 meters (recommended), 2000 meters (reachable) Nighttime visual distance: 500 meters (recommended), 1000 meters (reachable)

Visible Light Indicators

Image Sensor 4MP pixel, 1/1.8" low-light CMOS

Lens 30x optical zoom, 7.1mm ~213mm, F1.5~F5.0

Minimum Illumination Color 0.001Lux (F1.5), Black and White 0.0005 (F1.5)

Night Vision Enhancement Black light technology component

Fog Penetration Electronic + optical fog penetration with three-level fog penetration

Anti-Shake Gyro anti-shake, heat wave drift suppression, optical anti-shake (optional)

Image Processing Supports 3D intelligent noise reduction, strong light suppression, wide dynamic range, frame accumulation, and backlight compensation functions

Laser Indicators

Laser Type Class A high-power fiber-coupled semiconductor laser, 808±nm wavelength, nitrogen-filled sealing, expected lifespan of 20000 hours

Laser Output Power 18W

White Light Laser (optional) 18W electric power RGB white light, 4W net output, 500-meter illumination distance.

Light Spot Homogenization Close-contact mirror homogenization technology, uniformity ≥95%

Laser Lens Focal length 2~80mm, HPLM laser lens assembly, no optical axis deviation during zooming

Laser Power Supply Adopts FTIS, ATPC multiple protections, high-efficiency precision constant current power supply, delayed startup, digital filtering

Optical Axis Calibration External adjustment via adjustment hole (standard), remote electric optical axis adjustment (optional)

Beam Divergence Angle 0.1°～48° electric continuous precision adjustment, beam angle display and projection positioning function (optional)

Operation Indicators

Rotation Speed Control speed: 0.01°/second to 60°/second, preset speed: 100°/second

Speed Level 64 levels, supporting stepless speed change (10000 levels)

Rotation Range 360° continuous horizontal rotation, vertical +90°～－90°

Preset Positions 255 preset positions (expandable to 10000), power-off memory, no loss or deviation after power-off

Positioning Accuracy ±0.1°

Positioning Function Supports absolute value positioning, relative value positioning, and geographic information positioning functions

3D Positioning Supports frame selection zoom positioning

Data Return Azimuth angle, field of view angle, focal length value, focus value query upload/active upload

Data Return Method Transparent channel, SDK protocol, high-precision interface protocol, compatible with mainstream coastal defense platform software

Expansion Functions (optional) Electronic compass, gyroscope, Beidou/GPS and other sensors, forming multi-purpose, multi-functional situation awareness

Artificial Intelligence (optional function)

Intelligent Analysis Supports intrusion detection, entry/exit area detection, motion detection, loitering detection; supports detection of crowd gathering, rapid movement, object left behind, object taking; supports moving person/vehicle target detection, vehicle screening and filtering functions;

Intelligent Recognition Supports ship face recognition, face recognition, license plate recognition, animal recognition, bird recognition, plant recognition

Automatic Tracking Supports moving target tracking, heat source tracking, recognition tracking

Interface Indicators

Network Interface 1 x 100M Ethernet port

Serial Interface 1 x RS422 interface

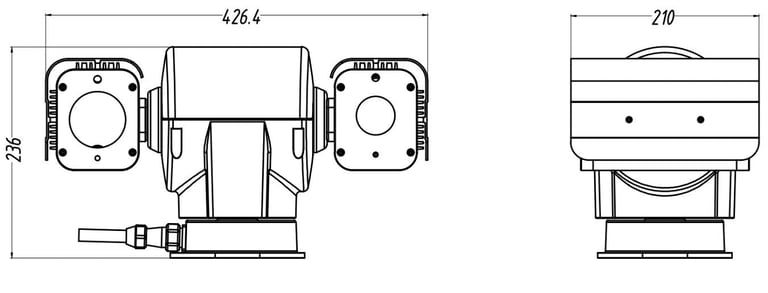

Video Interface: Optional HD-SDI high-definition digital video interface, analog video interfacePower Supply Interface: Optional DC12V/DC24V/DC30V, maximum power consumption 90W, power consumption 20W when the heater and laser are not turned onEnvironmental IndicatorsManual Defogging and Defrosting: On/OffOperating Temperature: -40°C ~ 70°CStorage Temperature: -60°C ~ 90°CExternal Environment: Humidity ≤ 95% RH (no condensation), can be used in plateau climates at 3500 metersTemperature Control System: Intelligent temperature control, variable power heater, ultra-low temperature startup, automatic cooling fanWind Resistance: Works normally under wind speed of 150 km/h, can withstand maximum wind speed of 210 km/hLightning and Surge Protection: Power interface 6000V, signal interface 2500VProtection Level: IP67Air Tightness: Pressure maintaining for 48 hours after filling with high-pressure gas, nitrogen-filled sealing (optional)Overall Dimensions: 426mm × 210mm × 236mm (L×W×H)Weight: Net weight 8KG
